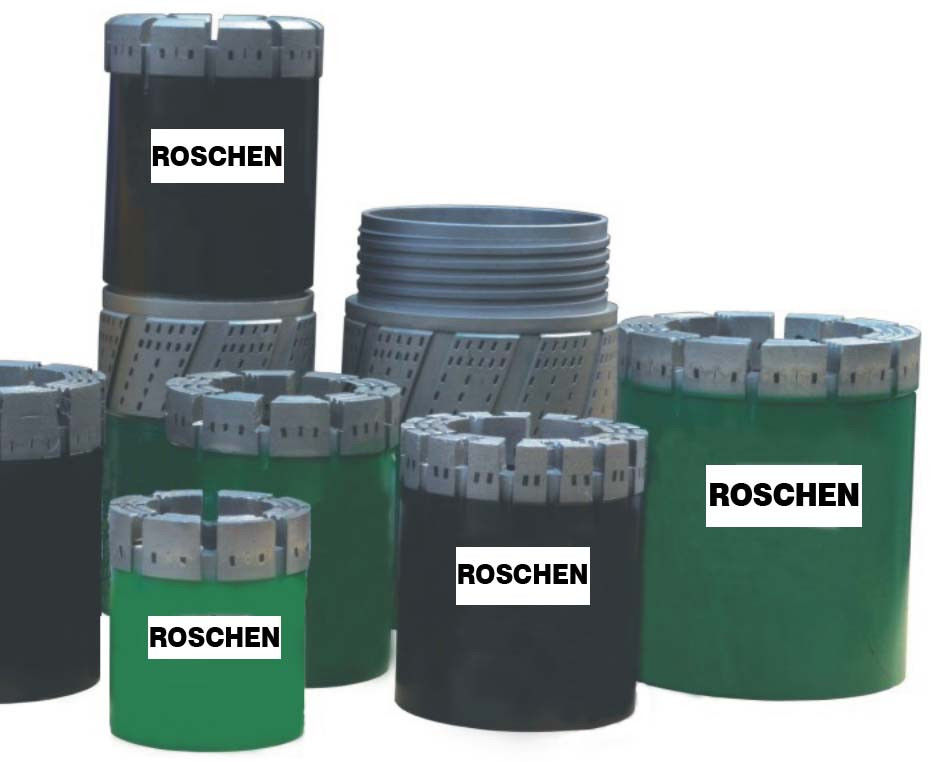

Impregnated Diamond Core Drill Bits BQ For Hard Rock stone Core In Mining Exploring

1 pcs
MOQ
$30
कीमत
Impregnated Diamond Core Drill Bits BQ For Hard Rock stone Core In Mining Exploring
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
Series: Wireline Diamond Core Bits
Model: Impregnated Diamond Core Bits
Drilling: Exploration Core Drilling
Drills: Wireline Core Drilling
Mining: Australia Mining
Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling
Usage: Africa Mining
Applications: Copper Mining Drilling
हाई लाइट:

Diamond Core Drilling Bits

,

Diamond Core Drill Bits For Rock

मूलभूत जानकारी
उत्पत्ति के प्लेस: Germany, US
ब्रांड नाम: ROSCHEN
प्रमाणन: ISO9001
मॉडल संख्या: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
भुगतान & नौवहन नियमों
पैकेजिंग विवरण: wooden, carton box
आपूर्ति की क्षमता: 1500pcs
उत्पाद विवरण

Impregnated Diamond Core Drill Bits BQ For Hard Rock Core In Mining Exploring


Impregnated Diamond Core Drill Bits BQ For Hard Rock stone Core In Mining Exploring



Detailed Product Description

Features: High Penetration Rate, High Speed,High Performance Material: Diamond
Type: BQ Diamond Core Bit/ BQ Drill Bit Use: Mineral Exploration,Mineral Exploration
Product Name: Core Drill Bits Crown Height: 9mm, 12mm, And 16mm



Impregnated Diamond Core Drill Bits BQ For Hard Rock Core In Mining Exploring





Diamond core bits BQ core drill bits



ROSCHEN impregnated diamond core bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application. The carefully selected grades of high quality synthetic diamond are distributed in the depth of impregnated bit's matrix series.

“ROSCHEN” brand has a high reputation in global market.





Specifications:



BQ Diamond Core Bit/ BQ drill bit is long life diamond core drill bit used for drilling/taking rock core in mining exploring.


1. good quality and long working life

2. over 50 years experiences

3. fast speed

4. reasonable price




Features:



 1.  Significantly outperforms the successful Series range in drilling speed and bit life.

 2.  Protects the diamond from oxidation and surface degradation.

 3.  Inhibits the premature "pull-out" of the diamond.

 4.  Available in multiple standard configurations and selected on the basis of relative rock hardness and ground conditions.



We are leading manufacturer of Impregnated/ surface-set diamond core bit, diamond casing bit, casing shoe bit, reaming shell etc.


Specialized in producing of varies diamond drilling tools, such as impregnated/ surface-set diamond core bit, diamond casing bit, diamond casing shoe bit, casing shoe bit, reaming shell, diamond reaming shell, TC core bit, TC casing shoe bit, TC shoe bit, Thin Wall Bit, core lifter, core lifter case, Core Barrels,  etc.

With ISO certificate & quality control.



Type of the bit matrix

The matrix of our impregnated bits is designed to expose new diamonds to the bits' cutting face as wear occurs. Fast penetration rate is maintained as a result of this action, also with long life using time is important, meanwhile it will keep the cost of diamond drilling to a minimum.

The optimum diamond size, concentration and matrix type are dependent on the hardness and abrasiveness of the formation to be drilled.



Earth Feature

Rock Name

Bit Matrix Type

Soft

Mudstone, shale, soft sand, peat, rock, mudstone, tuff,

Hard marl, marl and other hard sandy clay

Flat Bottomed Type, Arc-shaped, Steps Shaped Type(PDC non-Coring Drill Bit)

Medium

Limestone, marble, dolomite, rhyolite, limonite, etc

Steps Shaped Type, Concentric Circles Type, Canine Tooth Shaped Type, Wheeling Gear Shaped Type

Hard

Basalt, gneiss, granodiorite, hornfels, pegmatite, diabase,etc

Steps Shaped Type, Concentric Circles Type, Canine Tooth Shaped Type,. Wheeling Gear Shaped Type

Solid Hard

Hard granite, the British conglomerate, quartzite, hard slate,

 volcanic rocks, chert, basalt, etc

Steps Shaped Type, Concentric Circles Type, Canine Tooth Shaped Type,. Wheeling Gear Shaped Type





Size Available:


"Q" series: AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101, T6S 116
T series: T36, T46, T56, T66, T76, T86
Z series: Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146
B series: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
WF series: HWF, PWF, SWF, UWF, ZWF
WT series: RWT, EWT, AWT, BWT, NWT, HWT
WM series: EWM, AWM, BWM, NWM, HWM
WG series: EWG, AWG, BWG, NWG, HWG
Others: NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101.
