Overburden Drilling HWT Wireline Casing Advancer soil sampling overburden coring
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
हाई लाइट:

casing advance drilling

,

casing advancer systems

मूलभूत जानकारी
उत्पत्ति के प्लेस: Germany
ब्रांड नाम: ROSCHEN
प्रमाणन: ISO, API
मॉडल संख्या: BQ, NQ, HQ, PQ, SQ, BW, NW, HWT, PWT, SW, UW, ZW
भुगतान & नौवहन नियमों
पैकेजिंग विवरण: wooden packing
आपूर्ति की क्षमता: 100 sets
उत्पाद विवरण

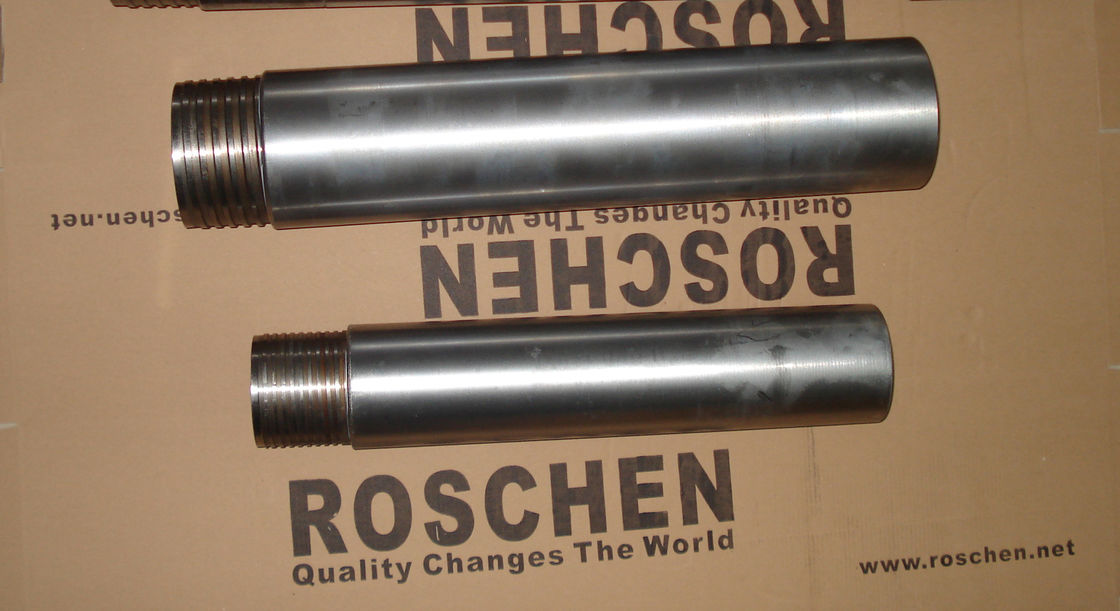

Overburden Drilling HWT Wireline Casing Advancer soil sampling overburden coring



Wireline Casing Advancer
HWT Wireline Casing Advancer for casing advancer soil sampling and overburden coring



Functions:


1. Roschen provides a full line of wireline casing advancers for soil sampling and overburden coring in conjunction with casing. These can also be used for casing through difficult overburden or formations.
2. Provides a positive latch for a one-step method of drilling through overburden and casing off to bedrock.



Details:



Roschen Wireline Casing Advancer has been designed to allow drilling and casing to be carried out at the same time as one integral operation.

This feature eliminates the need to drill the large diameter hole with a Rock Bit, pull the drill rod string and Rock Bit from the hole and then ream the casing back into the hole.

The integral operation makes the Roschen Casing Advancer eminently suitable for drilling through overburden or sands and gravels.

It is also particularly suitable for Landfill Drilling applications.



Outstanding Features:


1. Cases borehole as borehole advances.
2. Helps reduce drilling cost by saving rod and casing handling.
3. Can be used with Rock Bot or TC. Drag Bit.
4. Long Casing Shoe life as it is always reaming and never drilling alone.
5. Special flushing ports in the body ensure that the casing bit is adequately flushed.
6. Uses conventional Right Hand threaded Drill Rods and Casing.
7. Suitable for Air, Water or Mud Flush.
8. Manufactured from high quality materials.



Available specifications:

Casing Advancer / Wireline Casing Advancer
Specifications
BQ AW/AWL
HQ BW/NWL
NQ NW/HWL
PQ HW/HWT
BW PW/PWT
HWT SW/SWT
NW UW/UWT
PWT ZW/ZWT
