HWT Thread Pipe Casing for HWT Casing Shoe OD 146 mm x ID 128mm x 6mm

HWT Thread Pipe Casing for HWT Casing Shoe OD 146 mm x ID 128mm x 6mm
HWT Thread Pipe Casing for HWT Casing Shoe OD 146 mm x ID 128mm x 6mm HWT Thread Pipe Casing for HWT Casing Shoe OD 146 mm x ID 128mm x 6mm HWT Thread Pipe Casing for HWT Casing Shoe OD 146 mm x ID 128mm x 6mm

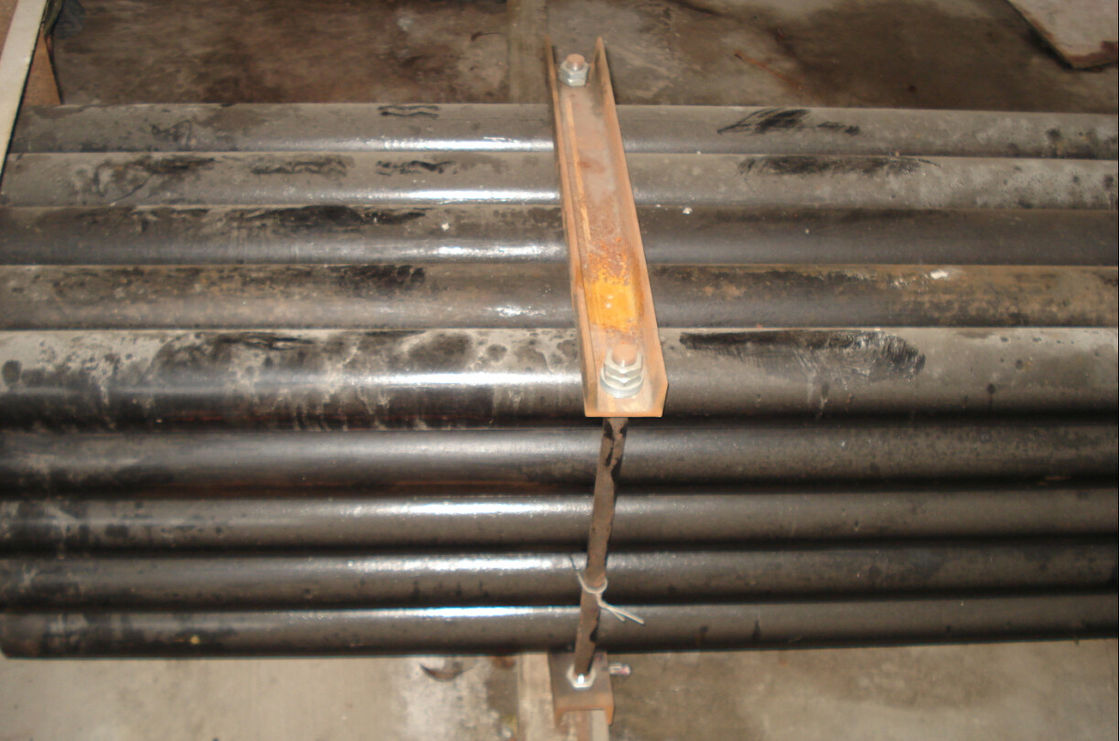

बड़ी छवि :  HWT Thread Pipe Casing for HWT Casing Shoe OD 146 mm x ID 128mm x 6mm

उत्पाद विवरण:

Place of Origin: Germany
ब्रांड नाम: ROSCHEN
प्रमाणन: ISO
Model Number: 146x128x6mm

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 30 meters
मूल्य: $100
Packaging Details: wooden packaging
Supply Ability: 2000 meters a day
विस्तृत उत्पाद विवरण
हाई लाइट:

Steel Casing Pipe

,

Seamless Casing Pipe

HWT Thread Pipe Casing for HWT Casing Shoe OD 146 mm x ID 128mm x 6mm





Quick Detail:


Casing Tubes:
BW, NW, HW, PW, SW, UW, ZW
Casing Tubes Metric: 46, 56, 66, 76, 86, 101, 116, 131, 146

W Casing

WT Casing

Metric Casing

W Series DCDMA




Description:

Casing

Roschen manufactures and distributes Industry-standard DCDMA W thread and premium WT thread.



W

This casing is intended for single use application, or situations where the casing is left in the hole.

The W casing is made from DCDMA C80 tubing and utilizes the DCDMA W thread form. Featuring

a straight thread, this universal casing design can be used in any drilling application where threaded

casing is required to be left in the ground.



Tubing

Parallel wall tubing is compatible with Q/E wireline in-hole tools, and standard DCDMA W sizes allow

nesting of other W casing.



Thread design

Double-butt joint provides strength in driving and jarring.



WT

This casing is engineered to surpass expectations and features quicker and easier make and break characteristics than the standard W casing. This thread works well under difficult drilling conditions and is designed for repeated application. The WT casing is made with DCDMA C80 tubing and the tapered HD thread provides increased strength.




Tubing

Parallel wall tubing is compatible with Q/E wireline in-hole tools, and standard DCDMA W sizes allow

nesting of other W casing.




Thread design

Compatible with HD rod threads.

Tapered joint and fewer threads per inch result in easier and faster make and break for reduced

wear and reduced labor costs.

Double-butt tapered joint and heavy duty buttress thread form provide greater torsion and pullback

strength.

Tapered thread reduces stress and provides a rigid joint to reduce movement and lubricant loss.

Load efficiency of 40% provides greater pullback strength to allow retrieval from difficult ground

conditions and repeated use.

Threads are easier to clean due to wider spacing of the threads for situations where casing is reused.




Specifications:


Sizes: AW, BW, NW, HW, PW, SW, ZW, BWT, NWT, HWT, PWT, SWT

146, 131, 116, 101, 86, 76, 66, 56 & 46mm.





TECHNICAL SPECIFICATIONS:


SIZE Tube O.D. Tube I.D. Threads
A B per inch
(mm) (mm) (T.P.I.)
146 (143/134) 143.3 133.3 4
131 (128/119) 128.4 118.4 4
116 (113/104) 113.4 103.4 4
101 (98/89) 98.4 88.4 4
86   (84/77) 84.4 77.5 4
76   (74/67) 74.4 67.5 4
66   (64/57) 64.4 57.5 4
56   (54/47) 54.3 47.4 4
46   (44/37) 44.3 37.4 4



The standard effective lengths are 3.0, 1.5, 1.0 & 0.5 meters.  Other lengths may be manufactured

upon request.


All casing tubes have right hand threads. Left hand threads can be manufactured if requested.
