RH350 Hammer DTH Drilling 10" SD DTH Down The Hole Hammer Bigger Size Hole Down The Hole Drilling

1 set
MOQ
Negotiate
कीमत
RH350 Hammer DTH Drilling 10" SD DTH Down The Hole Hammer Bigger Size Hole Down The Hole Drilling
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
Model: Down The Hole Hammer , DTH Hammer
Use: Down The Hole Drilling , DTH Drilling
Type: Top Hammer Drilling Tools
Drills: Water Well Drilling, Mining, Exploration Drilling
Usage: Mineral Drilling, Geothermal drilling
Machine: Hydraulic Crawler drill rig
Tools: Down The Hole Drilling Tools
Name: DHD340 COP44 QL40 SD4 M40 DTH Hammer
Functions: Vertical Drilling, Horizontal Drilling
QL Hammer: Quantum Leap DTH Hammer
Drilling Machine: DTH Hammer Drilling Machines
Sales: DTH Hammer For Sales
Altas Copco: Atlas Copco DTH Hammers
Hammer Manufacturer: DTH Hammer Manufacturer
Hammer Series: Secoroc DTH Hammers
Series No.: Secoroc Down-the-hole Equipment
Numa Hammer: Numa DTH Hammer
Mission Hammer: Mission DTH Hammers
Hammer Name: Quantum Leap Down The Hole Hammer
हाई लाइट:

down hole tools

,

down hole hammer

मूलभूत जानकारी
उत्पत्ति के प्लेस: Germany
ब्रांड नाम: ROSCHEN
प्रमाणन: ISO
मॉडल संख्या: 10" 12" 15" 18"
भुगतान & नौवहन नियमों
पैकेजिंग विवरण: Polywood Box
आपूर्ति की क्षमता: 600 sets
उत्पाद विवरण

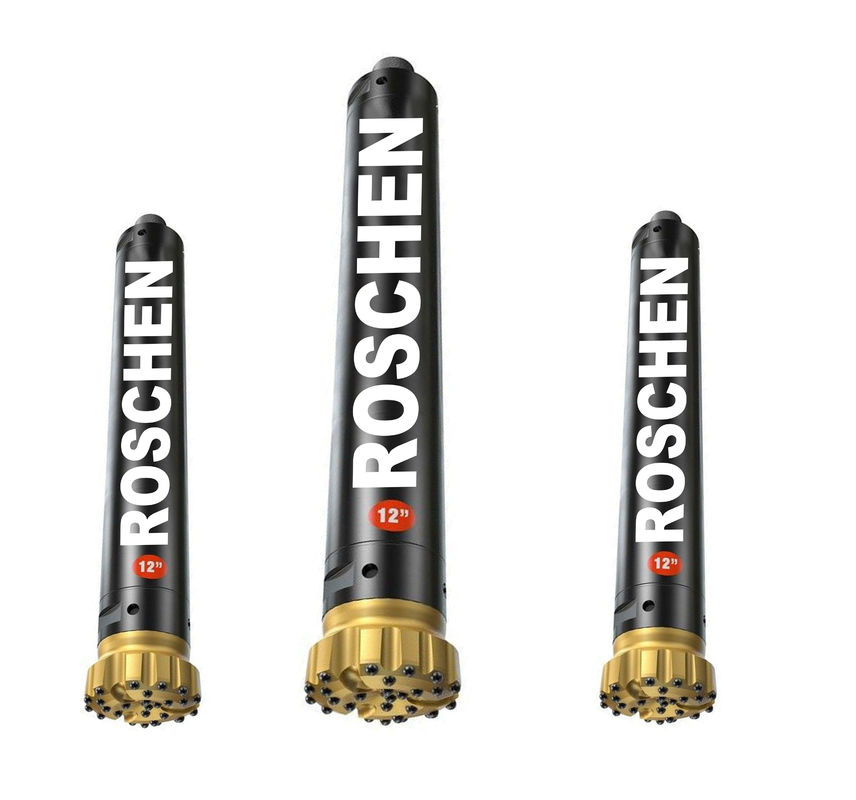

RH350 hammer


RH350 Hammer DTH Drilling Tools 10" SD DTH Hammer Bigger Size Hole Down The Hole Drilling





The RH350 is a lean and dependable hammer based on a well-proven design.





This hammer works with various industry-standard shank designs. The RH350 is suitable when drilling holes with a diameter from 244 mm up to 900 mm.



Roschen hammers combine high power and speed with low fuel consumption. They are tried and tested in demanding applications the world over.

You can be assured our extensive offering will deliver results. With the flexibity to work with various industry-standard shank designs and a wide range of standard size hammers we have a solution to match your requirements.





ROSCHEN Model Hammer Weight kg / lb Outside diameter mm/inch Hammer length mm/inch
ROS 100 RH350 10" SD 360 / 795 226 / 8.9 1480 / 58.3
ROS 120 RH350 12" SD 618 / 1360 275 / 10.8 1729 / 68.1
ROS 120 RH350 12" DHD 620 / 1365 275 / 10.8 1750 / 68.9
ROS 150 RH350 15" SD 1100 / 2420 360 / 14.2 1904 / 75
ROS 180 RH350 18" SD 1560 / 3430 410 / 16.1 1040 / 80.3
ROS 180 RH350 18" Numa 1574 / 3460 410 / 16.1 1993 / 78.5





ROSCHEN DTH Hammers Specifications
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
2" BR2 ROS 11
ROS 22
RD50 box ¢70-¢90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min
4" DHD340 ROS 34 API 2 3/8" Reg ¢110-¢135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min
5" DHD350 ROS 52
ROS 54
API 2 3/8"Reg/API 3 1/2" Reg ¢135-¢155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62
ROS 64
API 3 1/2" Reg ¢155-¢190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82
ROS 84
API 4 1/2" Reg ¢195-¢254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
M80/M85
10" SD10 ROS 100 API 6 5/8" Reg ¢254-¢311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ¢305-¢445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes: Any special size of DTH bits will be available by requests.
Metzke, Remet thread is available!
