4140 Sonic Drilling Rod 3 - 1/2" Duty with Advanced Processing Friction Welded Techniques

4140 Sonic Drilling Rod 3 - 1/2" Duty with Advanced Processing Friction Welded Techniques
4140 Sonic Drilling Rod 3 - 1/2" Duty with Advanced Processing Friction Welded Techniques 4140 Sonic Drilling Rod 3 - 1/2" Duty with Advanced Processing Friction Welded Techniques 4140 Sonic Drilling Rod 3 - 1/2" Duty with Advanced Processing Friction Welded Techniques

बड़ी छवि :  4140 Sonic Drilling Rod 3 - 1/2" Duty with Advanced Processing Friction Welded Techniques

उत्पाद विवरण:

Place of Origin: Germany
ब्रांड नाम: ROSCHEN
प्रमाणन: ISO
Model Number: 3 1/2 3 1/2 4 1/2 4 1/2 4 1/2

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 12
मूल्य: $21/pc
Packaging Details: wooden box
Supply Ability: 99[cs/days
विस्तृत उत्पाद विवरण
हाई लाइट:

shank adapter

,

drill extension rod

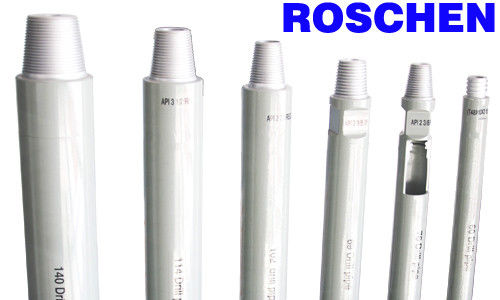

4140 Sonic Drilling Rod 3 - 1/2" Duty with Advanced Processing Friction Welded Techniques



Standard Duty Rods (SD)


ROSCHEN' SD sonic rods are the equivalent to most other sonic rods available in the marketplace. SD's are a quality rod, but not manufactured specifically for sonic drilling applications.



Features:
1. Plain end mid-body
2. 4140 QT tool joints
3. 3.65" sq. inch weld area
4. Inertia welded - increased strength due to full face surface welds.
5. Heat treated - weld zone to further optimize the mechanical and physical properties of the rod.


Specifications of Sonic Drill rods:

SONIC DRILL RODS SPECIFICATIONS
O.D. I.D. THREAD* WEIGHT
in mm in mm lbs/10ft kg/3m
3 1/2 88.9 2 1/4 57.1 HP90 RH 134 59.8
3 1/2 88.9 1 3/4 44.5 2 3/8" IF 137 61.2
4 1/2 114.3 3 1/4 82.55 HP90 RH 216 96.4
4 1/2 114.3 2 1/8 53.98 2 7/8" IF 225 100.5
4 1/2 114.3 3 76.2 ROUSSY 240 107.1

* HP90 is compatible with H90 thread.



SONIC HD DRILL ROD
O.D. I.D.* LENGTH THREAD
3 1/2" 2 1/4" 1' HP90
3 1/2" 2 1/4" 2' HP90
3 1/2" 2 1/4" 5' HP90
3 1/2" 2 1/4" 10' HP90
3 1/2" 2 1/4" 20' HP90
3 1/2" 1 3/4" 1' 2 3/8" IF
3 1/2" 1 3/4" 2' 2 3/8" IF
3 1/2" 1 3/4" 5' 2 3/8" IF
3 1/2" 1 3/4" 10' 2 3/8" IF
3 1/2" 1 3/4" 20' 2 3/8" IF
4 1/2" 3 1/4" 1' HP90
4 1/2" 3 1/4" 2' HP90
4 1/2" 3 1/4" 5' HP90
4 1/2" 3 1/4" 10' HP90
4 1/2" 3 1/4" 20' HP90
4 1/2" 2 1/8" 1' 2 7/8" IF
4 1/2" 2 1/8" 2' 2 7/8" IF
4 1/2" 2 1/8" 5' 2 7/8" IF
4 1/2" 2 1/8" 10' 2 7/8" IF
4 1/2" 2 1/8" 20' 2 7/8" IF
4 1/2" 3" 1' ROUSSY
4 1/2" 3" 2' ROUSSY
4 1/2" 3" 5' ROUSSY
4 1/2" 3" 10' ROUSSY
4 1/2" 3" 20' ROUSSY

*I.D. is measured at the tool joint.
