Surface Set NQ Wireline Core Drilling Bits For Mining Exploration , ISO9001 Approvals

1 pcs
MOQ
$80
कीमत
Surface Set NQ Wireline Core Drilling Bits For Mining Exploration , ISO9001 Approvals
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
Series: Wireline Diamond Core Bits
Model: Impregnated Diamond Core Bits
Drilling: Exploration Core Drilling
Drills: Wireline Core Drilling
Mining: Australia Mining
Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling
Usage: Africa Mining
Applications: Copper Mining Drilling
हाई लाइट:

Concrete Core Drill Bit

,

Diamond Core Drill Bits For Rock

मूलभूत जानकारी
उत्पत्ति के प्लेस: Germany
ब्रांड नाम: ROSCHEN
प्रमाणन: ISO9001
मॉडल संख्या: AQ, BQ, NQ, HQ, PQ/ BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT, T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
भुगतान & नौवहन नियमों
पैकेजिंग विवरण: wooden, carton packaging
आपूर्ति की क्षमता: 600 pcs per month
उत्पाद विवरण

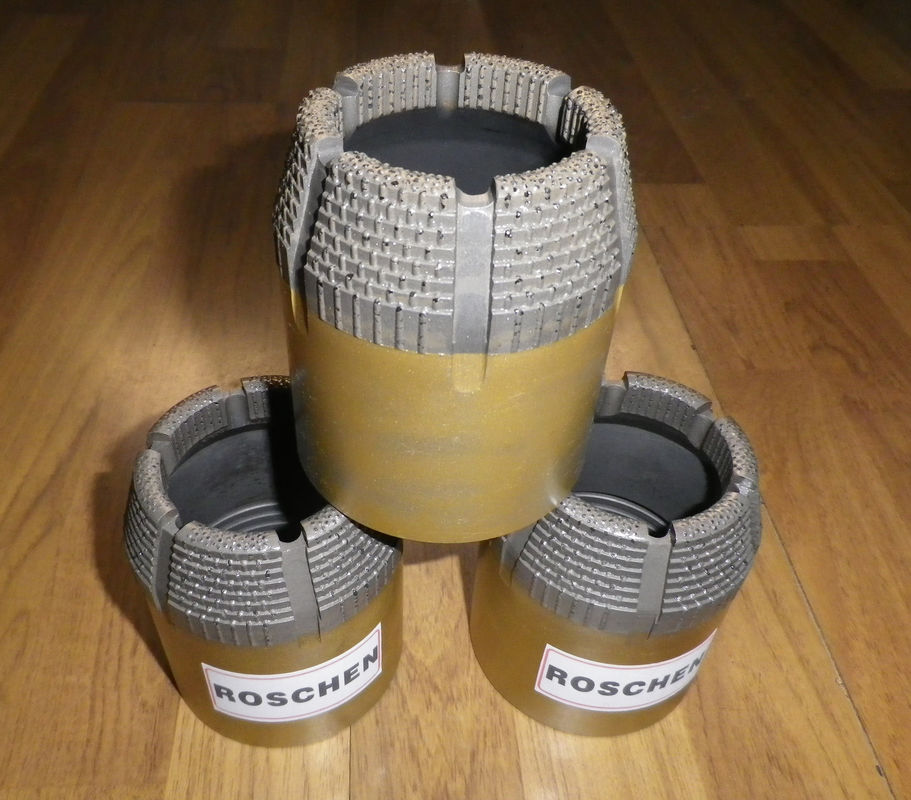

Surface Set NQ Wireline Core Drilling Bits For Mining Exploration , ISO9001 Approvals





Wireline Diamond Impregnated and Surface Set Core Drill Bits Mining Drilling Hole

Wireline Diamond Impregnated and Surface Set NQ Core Drill Bits Mining Drilling Hole

Wireline Diamond Impregnated and Surface Set NQ Core Drill Bits in Mining exploration Drilling Hole



Detailed Product Description:


Wireline Diamond Imp And Surface Set  Core Drill Bits  Mining Drilling Hole





Specifications:



1. ISO9001:9002 certificated
2. 10years manufacturing experience
3. Super antiwear characteristic
4. Super long lifetime
5. Solid quality





Product Advantages:



1. full Q series and T series drilling sizes (A, B, N, P, H).

2. various waterways design.

3. long bit life and good performance.

4. cost effictive;







Dimensions of Core Bits

Q Series

AQ, BQ, NQ, NQ2,NQ3,HQ, HQ2,HQ3,PQ,PQ2,PQ3

T, TT, T2&TB Series

T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 Core line, T2-86, T2-86 Core line, T2-101,T2-101Core line

T6 Series

T6-76, T6-86, T6-101, T6-116,   T6-131, T6-146

B Series (ISO3552-1)

B36, B46, B56, B66, B76, B86, B101, B116, B131, B146

WF Series:

HWF, PWF, SWF, UWF, ZWF

WT Series:

RWT, EWT, AWT, BWT, NWT, HWT (Single Tube/Double Tube)

WG Series:

EWG, AWG, BWG, NWG, HWG (Single Tube/Double Tube)

WM Series:

EWM, AWM, BWM, NWM

N Guage Core Bits

WLN, WLN2, WLN3, NMLC, NWG NX, NWM, NWT, TNW

H Gauge Core Bits

WLH, WLH-3.830, WLH-3.895, WLH3, WLHTT, HMLC, HWF-long, HWM,HWT





The impregnated diamond bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application. The carefully selected grades of high quality synthetic diamond are distributed in the depth of impregnated bit's matrix series. The matrix layer of the ZM contains a uniform distribution of these crystals that are embedded in a powdered metal bond.

The matrix of our impregnated bits is designed to expose new diamonds to the bits cutting face as wear occurs. Fast penetration rate is maintained as a result of this action.

Our impregnated bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum.





Crown Height:
ROSCHEN offers crown impregnated depths 14mm , 16mm, 25mm, The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.

Waterways:
Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.

Matrix:
ROSCHEN impregnated bits matrices can be selected by our engineer according to ground conditions at client's work site.



Threads:

standard Q threads as well as thread types required by clients are available.





Advantages:



1. Fast cutting and drilling speed

2. Long life, stable performance

3. Low power consumption

4. Professional OEM, superior grade quality, more than 5years manufacturing experience

5. CE: ISO: 9001: 2000



ROSCHEN are leading manufacturer of Impregnated/ surface-set diamond core bit, diamond casing bit, casing shoe bit, reaming shell etc.

Also Specialized in producing of varies diamond drilling tools, such as impregnated/ surface-set diamond core bit, diamond casing bit, diamond casing shoe bit, casing shoe bit, reaming shell, diamond reaming shell, TC core bit, TC casing shoe bit, TC shoe bit, Thin Wall Bit, core lifter, core lifter case, Core Barrels,  etc





Wireline Diamond Imp And Surface Set  Core Drill Bits  Mining Drilling Hole



       .

  Wireline Diamond Imp And Surface Set  Core Drill Bits  Mining Drilling Hole
