BQ HQ NQ PQ Core Drilling Tools / Diamond Reaming Shells , Surface Set and Impregnated
BQ HQ NQ PQ Core Drilling Tools / Diamond Reaming Shells , Surface Set and Impregnated reamer for exploration core drilling
| Features: | Natural Or Synthetic Diamond | Product Name: | Reaming Shells |
| Machine Type: | Drilling Tools | Type: | Core Drill Bit,Construction Tool Parts |
| Application: | Geological Exploration, Mining Exploration, Hydrogeological Exploration And Oil, Gas, Exploration | Model Number: | BQ,NQ,HQ,RQ,PQ,T2,T6,146,TT48 Etc |
Core Drilling Tools / Diamond Reaming Shells , Surface Set And Impregnated
1. Introduction:

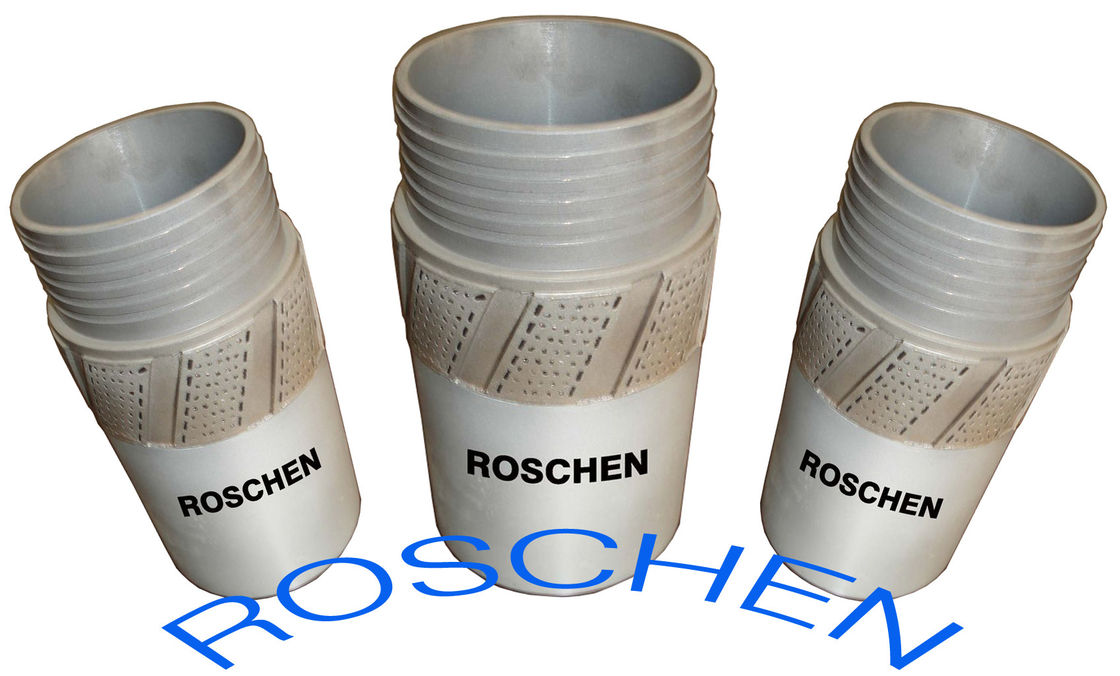

Reaming shell is set with natural or synthetic diamond, and it is used to couple the drill bit with the core barrel. Its main function is to ream the hole to the correct constant specific diameter which ensures adequate clearance for the core barrel and sufficient clearance for the new bit which replaces an old one. It also acts as a stabilizer for drill bit.
Reaming shells (with double pads or three pads) are suitable to use in all formation conditions ranging from broken and abrasive to consolidated and non-abrasive. As this kind of reaming shell is physically longer than the standard type, it is necessary to use an appropriate inner tube extension in order to compensate for the difference in overall reaming shell length.
Specialisted in producing varies kinds of diamond core bits in different international standard size for soft, medieum to hard rock formations.
With ISO certificate & quality control.
2. Avaliable Size of reaming shells:
| Item | Diamond bit | REAMING SHELL | |||||
| “Q”series wireline | size | Bit set OD | Bit set ID | ||||
| mm | inch | mm | inch | mm | inch | ||
| AQ | 47.6 | 1.88 | 26.97 | 1.06 | 48 | 1.89 | |
| BQ | 59.5 | 2.35 | 36.4 | 1.43 | 59.9 | 2.36 | |
| NQ | 75.3 | 2.97 | 47.6 | 1.88 | 75.7 | 2.98 | |
| HQ | 95.58 | 3.77 | 63.5 | 2.5 | 96 | 3.78 | |
| PQ | 122 | 4.8 | 84.96 | 3.35 | 122.6 | 4.83 | |
| Swedish Metric T2 Series | 36 | 36 | 1.417 | 22 | 0.866 | 36.3 | 1.429 |
| 46 | 46 | 1.811 | 32 | 1.26 | 46.3 | 1.823 | |
| 56 | 56 | 2.205 | 42 | 1.654 | 56.3 | 2.217 | |
| 66 | 66 | 2.598 | 52 | 2.047 | 66.3 | 2.61 | |
| 76 | 76 | 2.992 | 62 | 2.441 | 76.3 | 3.004 | |
| 86 | 86 | 3.386 | 72 | 2.835 | 86.3 | 3.398 | |
| 101 | 101 | 3.976 | 84 | 3.307 | 101.3 | 3.988 | |
| Swedish T Series | TAW | 47.6 | 1.875 | 23.2 | 1.31 | 48 | 1.89 |
| TBW | 59.5 | 2.345 | 44.9 | 1.77 | 59.9 | 2.36 | |
| TNW | 75.3 | 2.965 | 60.5 | 2.38 | 75.7 | 2.98 | |
