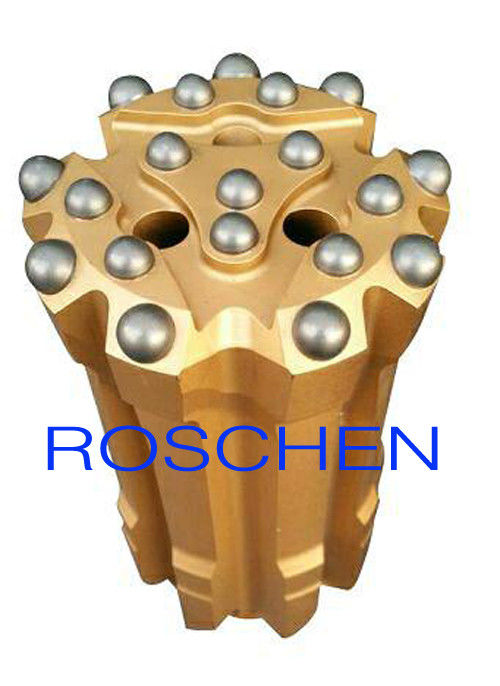

GT60 102mm Thread Button Bits For Rock Drilling , Top Hammer Drilling
GT60 Thread Button Bits
Model: GT60 Threaded
Other Names: Thread Button Drill Bit, Drill Button Bit, Thread Button Bits
Bit Diameter: 92mm,96mm,102mm,115mm,127mm,140mm,152mm
Material: Alloy Steel Bar 45CrNiMoV and Tungsten Carbide YK05
Button Type: Spherical, Hemispherical, Ballistic, Parabolic
Face Type: Drop Center, Flat Face
Bit Body: Standard, Retrac
Processing: Forging
Technology: Heat Treatment
Product Description:
Our GT60 bench and production rock drilling tools, thread button bits are designed to comply with all kinds of rock formations and drilling site conditions, with longer life, higher penetration rates etc..
Specifications:
Material: Alloy steel bar 45CrNiMoV and tungsten carbide tips YK05
Body type: Normal body or retrac body
Thread type: R22,R25,R28,R32,R38,T38,T45,T51,ST58,ST68,GT60
Diameter: 32mm-127mm
Button bit shape: spherical and ballistic
Face shape: Flat shape and drop-center shape
Technique parameter:
Main threaded button bits are:
R22-32mm, R22-36mm, R22-38mm, R22-41mm;
R25-33mm, R25-35mm, R25-37mm, R25-38mm, R25-41mm, R25-43mm, R25-45mm;
R28-37mm, R28-38mm, R28-41mm, R28-43mm, R28-45mm, R28-48mm;
R32-41mm, R32-43mm, R32-45mm, R32-48mm, R32-51mm, R32-54mm, R32-57mm, R32-64mm, R32-76mm;
T38-64mm, T38-70mm, T38-76mm, T38-89mm, T38-102mm, T38-127mm;
T45-76mm, T45-89mm, T45-102mm;
T51-89mm, T51-102mm, T51-115mm, T51-127mm;
GT60-92mm, GT60-96mm, GT60-102mm, GT60-115mm, GT60-118mm, GT60-127mm, GT60-140mm, GT60-152mm etc.
Further exploration drilling products information, please don't hesitate to contact us.
