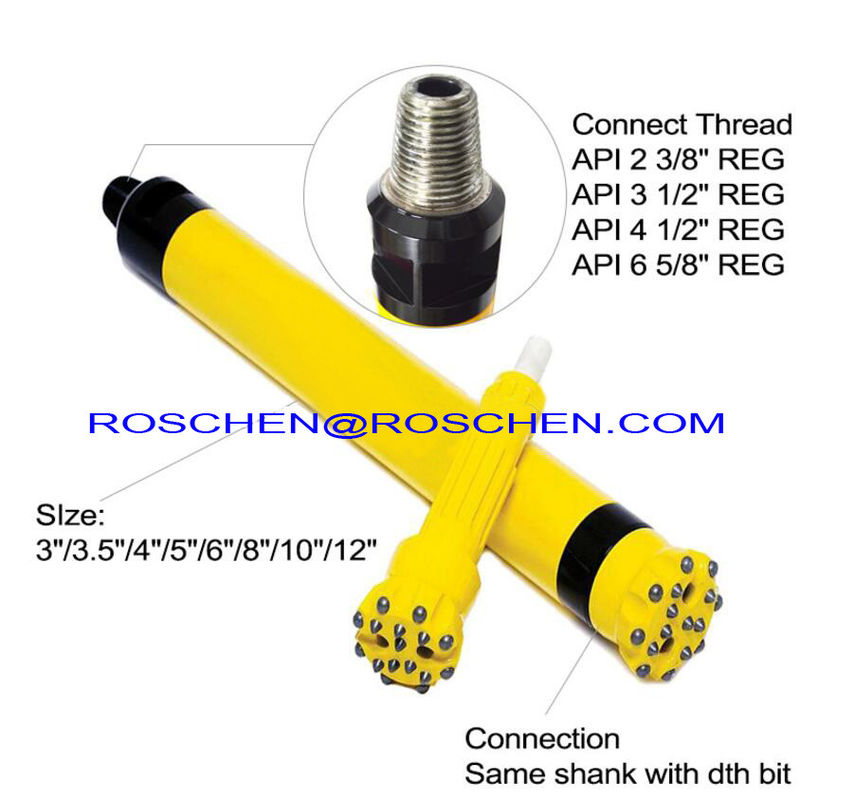

CIR90 downhole hammer with 100mm diameter bits , Geological Instruments
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
Type: DTH Drill Bit
Model: Atlas Copco Hammer and Bits
Usage: For rock drilling, stone quarrying drilling
Key word: DTH Hammers bit for Crawler Blast Hole
name: Ingersoll rand dth hammer and bit
Connect thread: API 2 3/8" Reg, 2 78" Reg., 4 1/2' Reg, 6 5/8" Reg
DTH Bit face: Center drop/Flat/convex/concave/double gauge face bits
Series: DTH Hammer
Machine: Hydraulic Crawler Drill Rig
Drilling: Down The Hole Hammer Drilling, DTH Hammer Drilling
Applications: Water Well Drilling, Minerals Drilling
Hammer type: COP, SD, DHD, BR, QL, BR, MISSON
Bit Diameter: 65 ~ 900mm
Advantages: High quality and factory prices
हाई लाइट:

down hole tools

,

down hole hammer

मूलभूत जानकारी
उत्पत्ति के प्लेस: CHINA
ब्रांड नाम: ROSCHEN
प्रमाणन: ISO
मॉडल संख्या: CIR90
भुगतान & नौवहन नियमों
पैकेजिंग विवरण: Bundles
आपूर्ति की क्षमता: 100000 sets
उत्पाद विवरण



CIR90 downhole hammer with 100mm diameter bits , Geological Instruments



Our Company


Roschen Group Limited is a collection of drilling product technology and development, manufacture, and marketing for the integration of large-scale, diversified company.


Roschen is a professional and modern high-tech enterprise, engaged in developing and manufacturing drill and pneumatic tools.


After 30 years development, Roschen covers an area of 106,000 m2, is one of the largest manufacturers of drilling tools in global and one of the leading suppliers.


Packaging & Delivery



Packaging Details:


Wooden cases or according to your special requirement.


Delivery Detail:


Within 25 days after receiving your T/T payment or L/C original.


Products name: DTH Hammers bit for Crawler Blast Hole Drilling Rig




Products features:



DTH bit is our main product. After many years search, we have rich experience in development and manufacturing high quality products, which adopted high-quality raw materials, advanced technology and passed through strictly inspection.


1. High and low air pressure down-the-hole drill bits
2. Low air pressure hole diameter: 65 ~ 220mm
3. High air pressure hole diameter: 85 ~ 305mm
4. Face type: drop center/concave/convex/double gauge/flat
5. Our DTH Bit can be suitable for many types of DTH Hammer, such as XL, Mission, COP, IR, Mach, Demag, SD, Bulroc, Halco Mach, Digger etc.





ROSCHEN DTH hammers Specifications
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
2" BR2 ROS 11  ROS 22 RD50 box ¢70-¢90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min
4" DHD340 ROS 34 API 2 3/8" Reg ¢110-¢135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min
5" DHD350 ROS 52  ROS 54 API 2 3/8"Reg/API 3 1/2" Reg ¢135-¢155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62  ROS 64 API 3 1/2" Reg ¢155-¢190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82  ROS 84 API 4 1/2" Reg ¢195-¢254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
10" SD10 ROS 100 API 6 5/8" Reg ¢254-¢311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ¢305-¢445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes: Metzke, Remet thread is available!




ROSCHEN DTH Bits Specifications
Hammer Size Bits diameter Shank ROSCHEN CODE
Metric Inch
1" 64mm-70mm 2 1/2"-2 3/4" BR1 ROS 11
2" 70mm-95mm 2 3/4"-3 3/4" MACH20/BR2 ROS 22
3" 90mm-102mm 3 1/2"-4" COP32/COP34/MACH303 ROS 32
M30/DHD3.5/BR3 ROS 34
4" 105mm-152mm 4 1/8"-6" COP44/DHD340/MACH44 ROS 42
SD4/M40/QL40 ROS 44
5" 133mm-165mm 5 1/4"-6 1/2" COP54/DHD350R/MACH50 ROS 52
SD5/M50/QL50/BR5 ROS 54
6" 152mm-254mm 4 1/8"-10" COP64/DHD360/SD6 ROS 62
M60/QL60/Bulroc BR6 ROS 64
8" 203mm-330mm 8"-13" COP84/DHD380/SD8 ROS 82
QL80/M80/M85 ROS 84
10" 254mm-380mm 10"-15" SD10 ROS 100
NUMA100
12" 305mm-508mm 12"-20" DHD1120/SD12 ROS 120
NUMA120/NUMA125
Notes: Any special size of DTH bits will be available by requests.
Metzke, Remet thread is available!







FAQ


The information about dth drill bit you may like to know before order:


1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight


2. Handling time for an order
Based on order quantity, normally it takes 20 days for production.
in 3 working days after receiving the advance payment


3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.


4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.


5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time


6. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B. Our sales team and Technical Support will response for your question within 24 hours through skype: ROSCHEN.TOOL and WhatsApp/Wechat: +86-13764195009
C. Free replacement will provide once the failure confirmed caused or our product quality.
