HV HV3 NV NV3 PV PV3 Conventional Diamond Core Barrel for exploration drilling

1 sets
MOQ
N/A
कीमत
HV HV3 NV NV3 PV PV3 Conventional Diamond Core Barrel for exploration drilling
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
Name: Core Barrel
Type: Conventional Core Barrel
Style: Wireline Core Barrel
Materials: European 4145 Steel Casing
Model: Q Series Core Barrel NQ, HQ, PQ Wireline Core Barrel
Metric: Bristish Metric Core Barrel
Standards: T 2-66, T 2-76, T 2-86, T 2-101, T 2-116; T6-76, T6-86, T6-101, T6-116
Core Barrels: Boart Longyear Core Barrel
Sweden Core Barrel: Mincon Core Barrel, Atlas Copco Core Barrel
Tools: Wireline Coring Tools
Q 3 Series: HQ 3, NQ 3, PQ 3 Core Barrels
Triple Core Barrel: BMLC, NMLC, HMLC Triple Tube Core Barrels
Series: Wireline Diamond Core Bits
Model No: Impregnated Diamond Core Bits
Drilling: Exploration Core Drilling
Drills: Wireline Core Drilling
Mining: Australia Mining
Exploration: Australia Exploration
Usage: Africa Mining
Applications: Copper Mining Drilling
हाई लाइट:

ट्रिपल ट्यूब कोर बैरल

,

ड्रिलिंग कोर बैरल

मूलभूत जानकारी
उत्पत्ति के प्लेस: Germany
ब्रांड नाम: ROSCHEN
प्रमाणन: ISO, API
मॉडल संख्या: AQ, BQ, NQ, HQ, PQ/ BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT, T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T6 86, T6 101, T6 116, T6 131 NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F
भुगतान & नौवहन नियमों
पैकेजिंग विवरण: Polywooden packing
आपूर्ति की क्षमता: 100 sets
उत्पाद विवरण

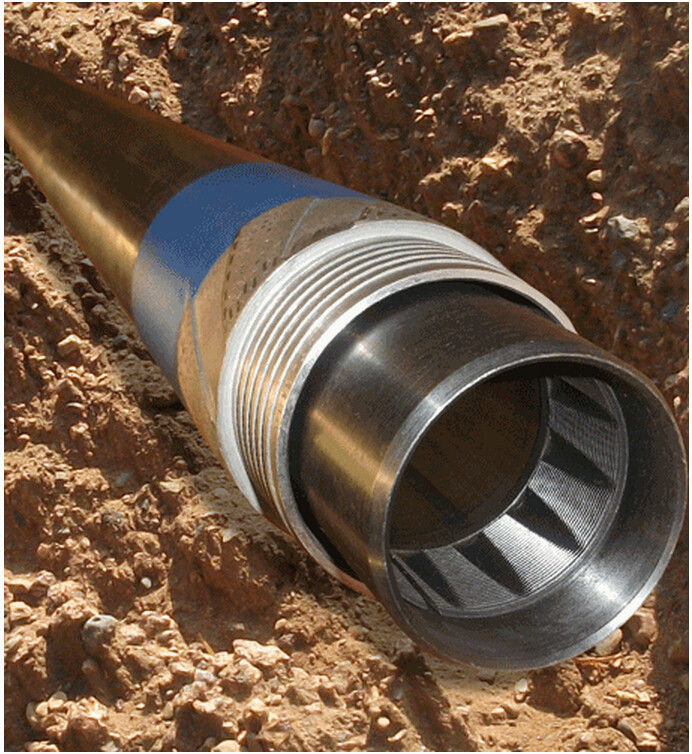

HV HV3 NV NV3 PV PV3 Conventional Diamond Core Barrel for exploration drilling



Conventional Diamond Core Drilling

Conventional Core Barrel Complete

Conventional core barrel 1.5 meter , Conventional core barrel 3.0 meters

Conventional core barrel 5 ft / 10 ft 1.5 meters / 3.0 meters for exploration core drilling

Conventional Diamond Core Drilling Conventional core barrel 5 ft / 10 ft for exploration core drilling

Conventional Diamond Core Drilling HV HV3 NV NV3 PV PV3 Conventional Core Barrel Complete for exploration core drilling




Conventional Diamond Core Drilling

Core Drilling | Excavator Hire

ROSCHEN have the capability to carry out diamond core drilling in various diameters - to depths up to 450m.

NLMC = 47.6mm diameter core, resulting in a 75.7mm diameter holes.

HQ = 63.5mm diameter core, resulting in a 96mm diameter hole

4C (Equivalent to PQ) = 85mm diameter core, resulting in 122.6mm diameter hole.


Core drilling is different to other drilling techniques in that a solid core of rock rather than cuttings is extracted from the hole. The diamond drill bit comprises a short steel shank with a cutting head using natural ("surface set") or man-made ("impregnated") diamonds as the cutting medium. In softer sedimentary formations and often coal, other cutting elements are used such as tungsten-carbide and polycrystalline diamond compacts (PCD). Water is the usual circulation fluid used to remove the cuttings and cool the drill bit.


As the drill bit advances, a cylindrical core of rock progressively fills a triple tube core barrel (double tube barrels are also used by some companies) immediately above the core bit. Core samples are periodically recovered, (ROSCHEN use 3.0m long core barrels,) at the end of the core "run" the complete barrel and the drill rods are pulled from the hole, the end of the barrel is disassembled by removing the core bit and catcher, the the stainless steel splits are then pumped out of the inner barrel by using high pressure water. The splits are then opened to reveal the core in virtually undisturbed condition.


Rotation speeds during diamond core drilling can vary from 150 to 400rpm for surface set bits, to more than 1500 rpm for impregnated bits. Penetration rates are much slower than other methods generally due to the hardness and at times the weakness of the rock, plus the time taken to retrieve the core barrel when drilling at deeper depths. An alternative to Conventional core drilling is wireline core drilling this can speed the drilling progress up especially when drilling deeper holes -





Wireline Core Drilling



ROSCHEN also have the capability to carry out wireline core drilling.


Wireline core drilling is the same principle as conventional core drilling whereby a solid core of rock is collected within the core barrel, the difference is how the core barrel is retrieved from the borehole. When the core barrel is full or the run is finished instead of the complete drill string - rods and core barrel being pulled from the hole, the core rods and outer core barrel remain in the hole and only the inner core barrel is retrieved by lowering a cable with an overshot down the core rods. The overshot attaches to the top of the inner tube/barrel of the core barrel and then the assembly is winched to the surface. The inner barrel is disassembled and the core pumped from the inner barrel as is done in conventional core drilling.


Wireline core drilling requires a completely different set of gear - bits, rods and associated tooling to that used for conventional core drilling which is not generally carried with the rigs at all times - please let your ROSCHEN contact know if you require wireline core drilling prior to mobilisation to site.


Specifications:


DCDMA sizes B, N, H, and P.
T2 56mm, T2 66mm, T2 76mm, T2 86mm, T2 89mm, T2 101mm, T2 116mm, T2 130mm

AQ, BQ, NQ, HQ, PQ/ BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT, T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T6 86, T6 101, T6 116, T6 131

NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101,

AW, BW, HW, NW, PW, SW, ZW
